Installation and OH&S — Flange Safety Bolt
Before installation, the following conditions must be met:
Refer to bracing plan on site and bracing requirements and a minimum concrete strength of 20MPa must be achieved.
Anchors spacing to have a minimum distance of 250mm all around and a minimum edge distance 250mm
Use safety equipment eye protection, ear protection and face mask.
Brace Base DetailFlange Safety Bolt – Concrete Panel Detail
FERRULE
FERRULE
FERRULE
Insure ferrule is rated and complies with AS 3850 and is fitted with a cross bar.

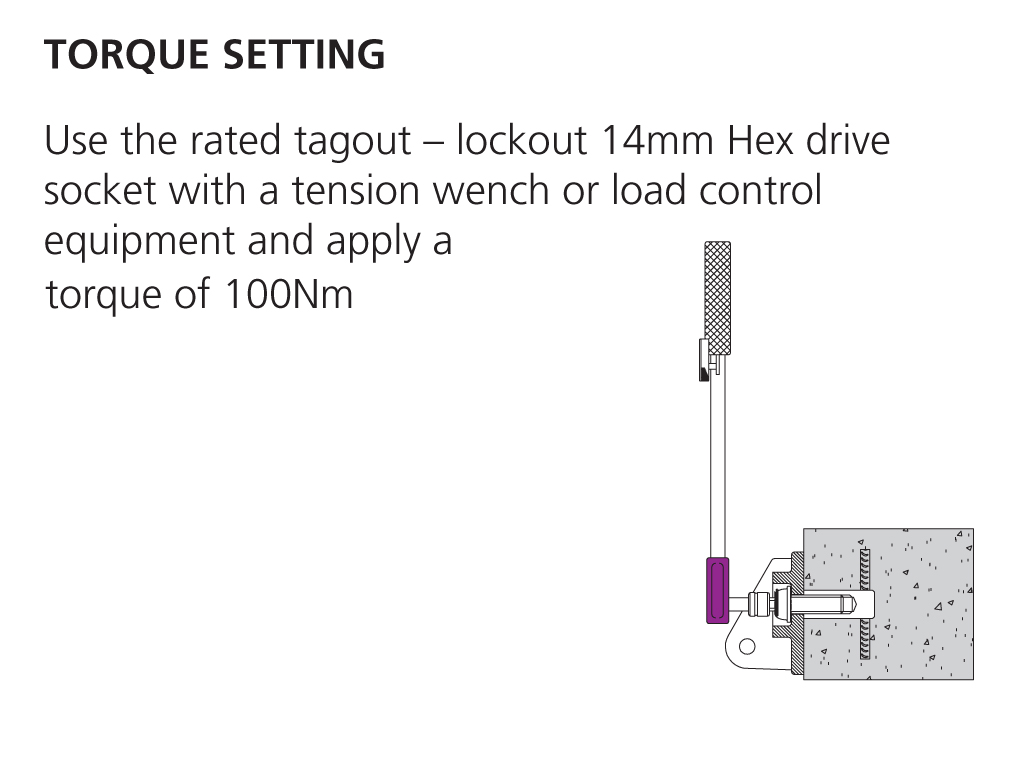

TORQUE SETTING
TORQUE SETTING
TORQUE SETTING
Use the rated tagout – lockout 14mm Hex drive socket with a tension wench or load control equipment and apply a torque of 100Nm.

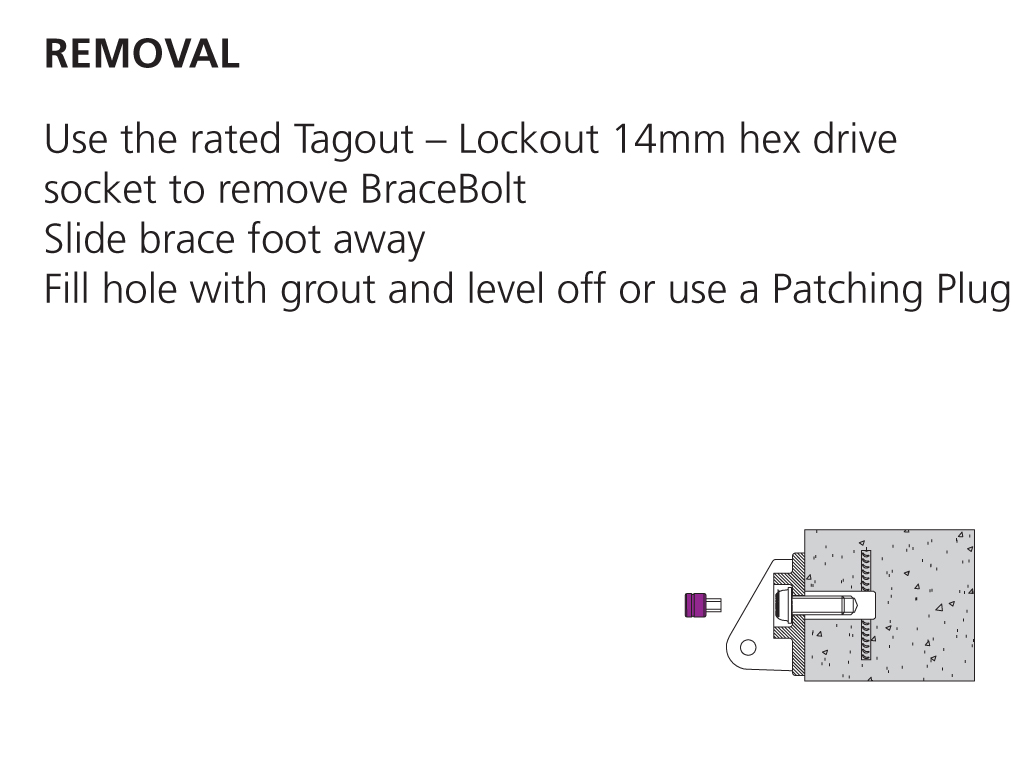

REMOVAL
REMOVAL
REMOVAL
Use the rated Tagout – Lockout 14mm hex drive socket to remove BraceBolt. Slide brace foot away. Fill hole with grout and level off or use a Patching Plug.
OHS Warning
OHS Warning
OHS Warning
Before any braces are removed the Concrete Element must be checked for fixture into the building structure and the site control officer has signed off.
