Specially designed and developed
The Flange Safety Bolt
The BraceBolt System is specially designed and developed for pre-cast and on-site concrete panel bracing. It is also the only system that complies with RJB Industries Safety Brace System ‘SBS’ in meeting all their ‘safety requirements’
The BraceBolt System also includes the New 14mm Hex Drive Adaptor.

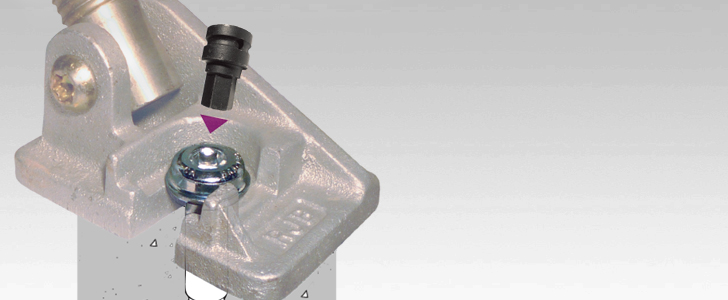

The New 14mm Hex Drive Adaptor
- Standard Type
- Tag-Out Lock-Out System Manufactured from Chromium Mollybenum Alloy Steel to meet the tough construction environment
- Fits into the pocket
- The key to the system

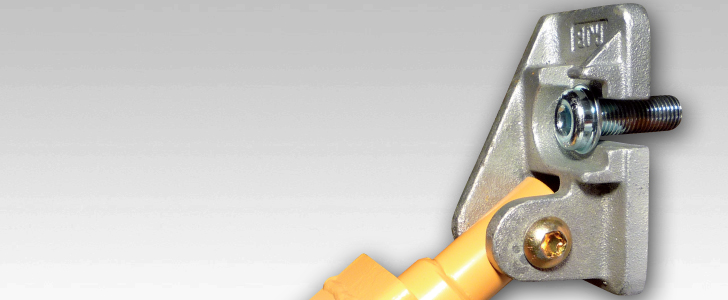

Flanged Bolt
- Grade 8.8 flanged bolt
- Domed flange head
- 14mm Hex Drive for tamper resistance
- Full M20 x 2.5 thread
- Gal Plated
Serration Washer
Intergrated Serration Washer: as per AS3850 para 2.4.1 and C2.4.1
Pull Out Capacity
Expansion Sleeve is locked onto the stepped cone nut. This sets the depth of the shear cone. Larger shear cone produces the high ulimate pullload
When safety and compliance on site matter
-
14mm Hex Drive
Tested to AS3850-2003
Complies with RJB Industries SBS
-
Key Features
-
